Double-Action Mechanism
Firearms encyclopedia article
From The Boise Gun Club Handbook
Overviewedit
The double-action (DA) mechanism is a trigger system in which a single pull of the trigger performs two functions: it cocks the hammer and then releases it to fire the round. Before this existed, every practical repeating handgun required the shooter to manually thumb the hammer rearward before the trigger could do anything at all.
The double-action mechanism eliminated that step — at a cost of a longer, heavier trigger pull — and in doing so changed how soldiers, police officers, and civilians thought about carrying and using a handgun.
The distinction sounds simple, but its operational consequences were significant enough that the single-action versus double-action debate played out in real blood during the Crimean War, the Indian Mutiny, and decades of American law enforcement history. Understanding why that debate mattered — and how it was resolved — is inseparable from understanding how the modern handgun evolved.
Development Historyedit
The Adams Innovation

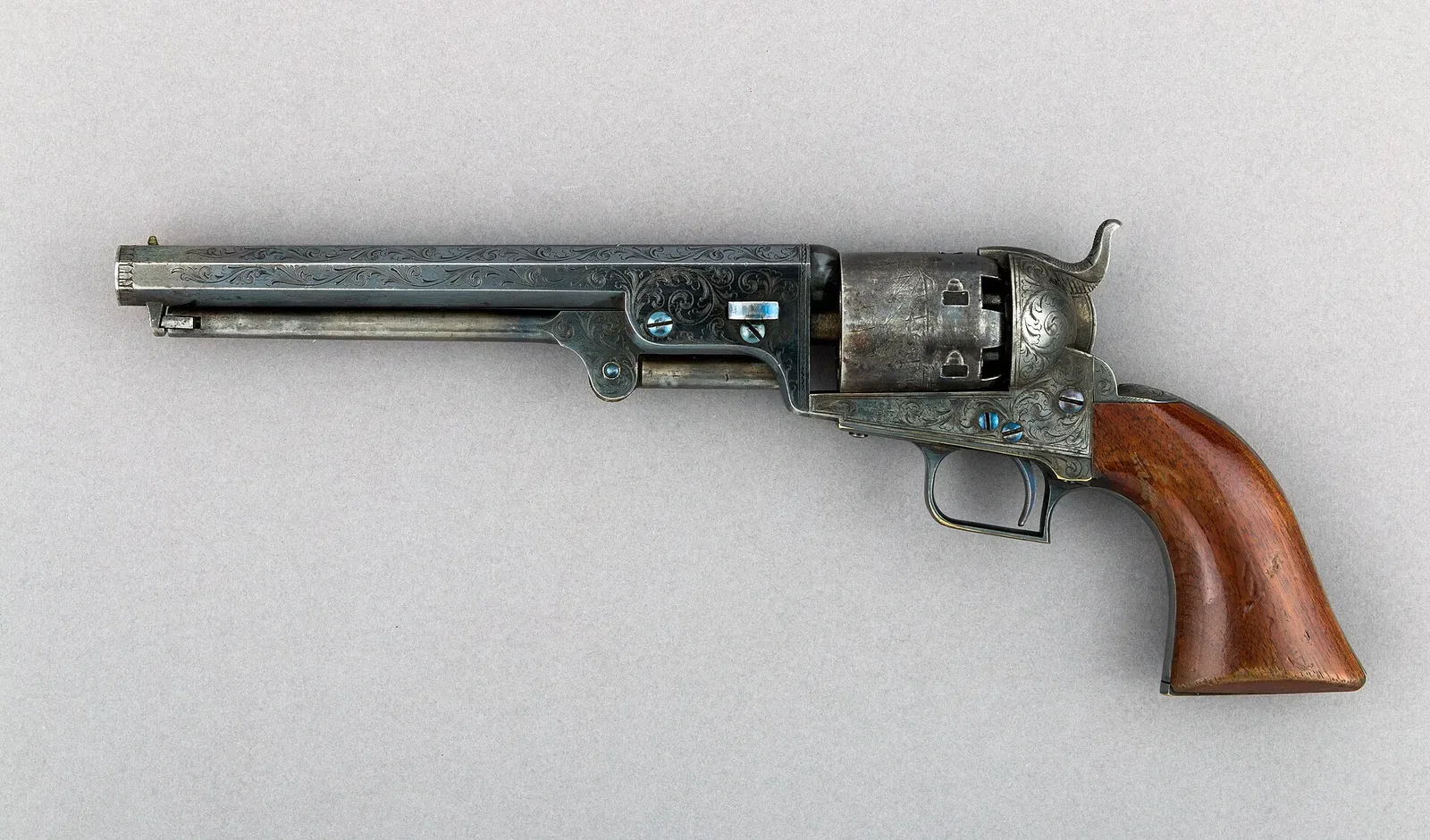

By the early 1850s, the revolver was already a proven concept. Samuel Colt had spent two decades refining his single-action design, and his revolvers — the Colt Navy 1851 prominent among them — were commercially successful and militarily respected. But single-action operation had a fundamental tactical limitation: between every shot, the shooter had to take their thumb off the gun, cock the hammer, and return to a firing grip.
Under fire, in close quarters, against multiple opponents, those fractions of a second mattered.

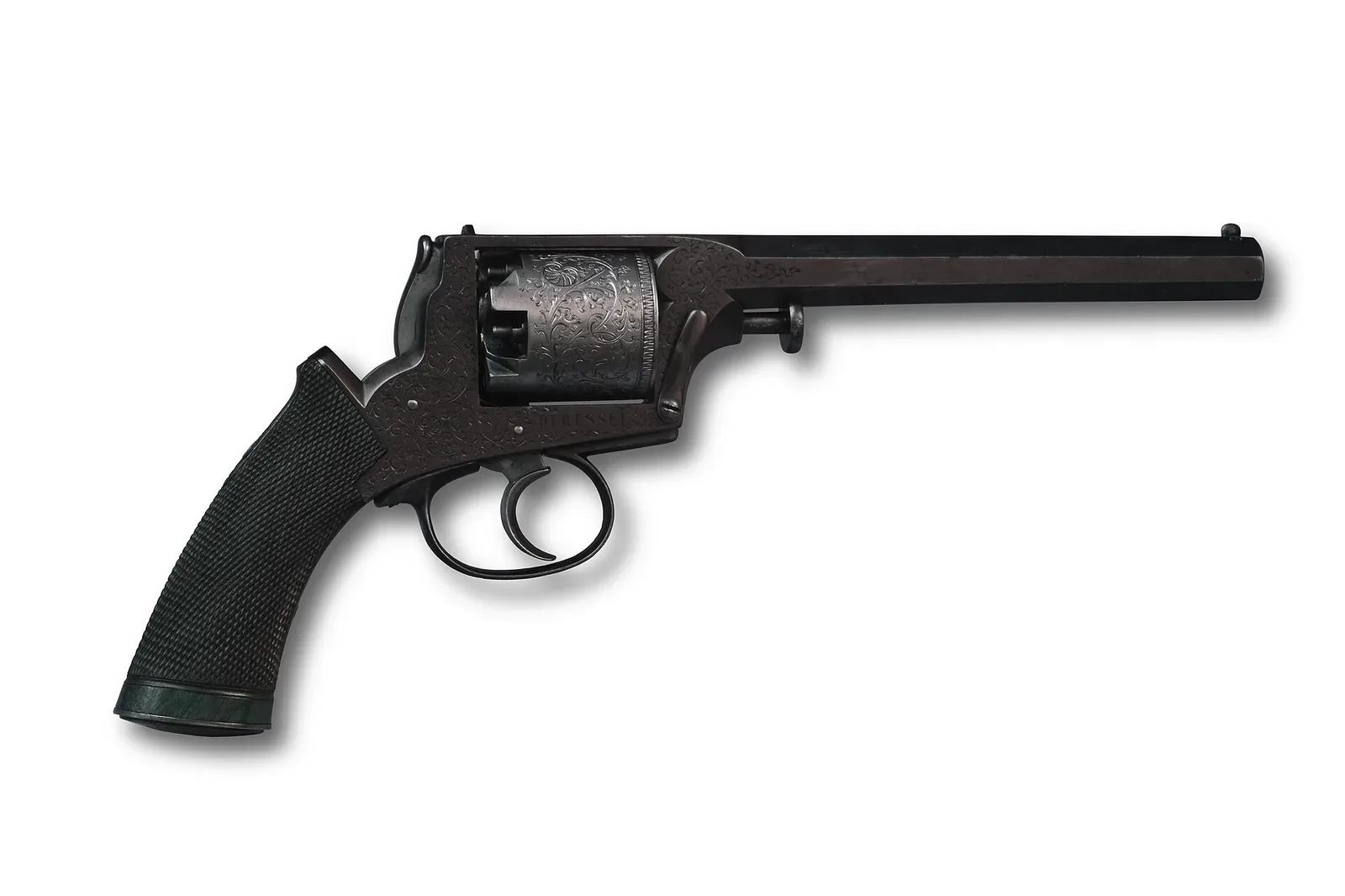

The answer came from England. In 1851, a London firearms manager named Robert Adams, working for the firm of George & John Deane, received a patent for a revolver in which pulling the trigger alone was sufficient to cock the hammer, rotate the cylinder to the next chamber, and release the hammer to fire. The Adams revolver was a five-shot percussion cap arm, and its headline feature was its rate of fire — a shooter could cycle through all five chambers as fast as they could pull the trigger.
| Feature | Adams Revolver (1851) | Colt Navy 1851 |
|---|---|---|
| Action Type | Double-action only (DAO) | Single-action |
| Capacity | 5 shots | 6 shots |
| Rate of Fire | Fast (trigger only) | Slow (manual cocking required) |
| Accuracy | Poor (heavy trigger) | Good (light SA trigger) |
| Manufacturing | Hand-fitted parts | Interchangeable parts |
| Reliability Issues | No recoil shield, soft nipples | Proven design |
| Tactical Advantage | Close combat | Aimed fire |
The Adams design carried a significant limitation, though. It had no spur on the hammer. The trigger mechanism was the only way to fire it, making it strictly a double-action only (DAO) arm. According to the historical sources, Adams actually incorporated a dropped extension on the hammer specifically to prevent users from cocking it manually. The result was a consistently long, heavy trigger pull on every shot — which hurt accuracy compared to a cocked single-action revolver.
The gun also had production problems:
- Parts were hand-fitted rather than machined to interchangeable tolerances
- Lacked a recoil shield behind the cylinder
- Percussion cap nipples were unhardened and occasionally detonated prematurely
- Consistently long, heavy trigger pull hurt accuracy
Despite those flaws, the Adams sold well enough in England that Deane & Deane made Adams a partner and renamed the firm Deane, Adams and Deane. The British Small Arms Committee studied it in 1853, and while no formal adoption resulted, a number of British officers purchased the Adams privately.
Combat Testing in Crimea
The Crimean War, which ran from 1853 to 1856, became the first real-world test of single-action versus double-action under combat conditions. British officers who carried Colts and those who carried Adams revolvers ended up in the same fights, and the comparison was direct.
The Colt was acknowledged to be more rugged and reliable. But in the close, chaotic infantry engagements that characterized Crimea, the Colt's requirement to manually cock between shots was a genuine tactical problem.
I had one of your largest sized Revolver Pistols at the bloody battle of Inkermann, and by some chance got surrounded by the Russians... had I to cock before each shot I should have lost my life. — J.G. Crosse, 88th Regiment of Foot
That testimony captures exactly what the double-action mechanism offered and what it cost: faster fire, at ranges where aimed precision mattered less than putting rounds downrange without breaking your grip.
The Beaumont Solution

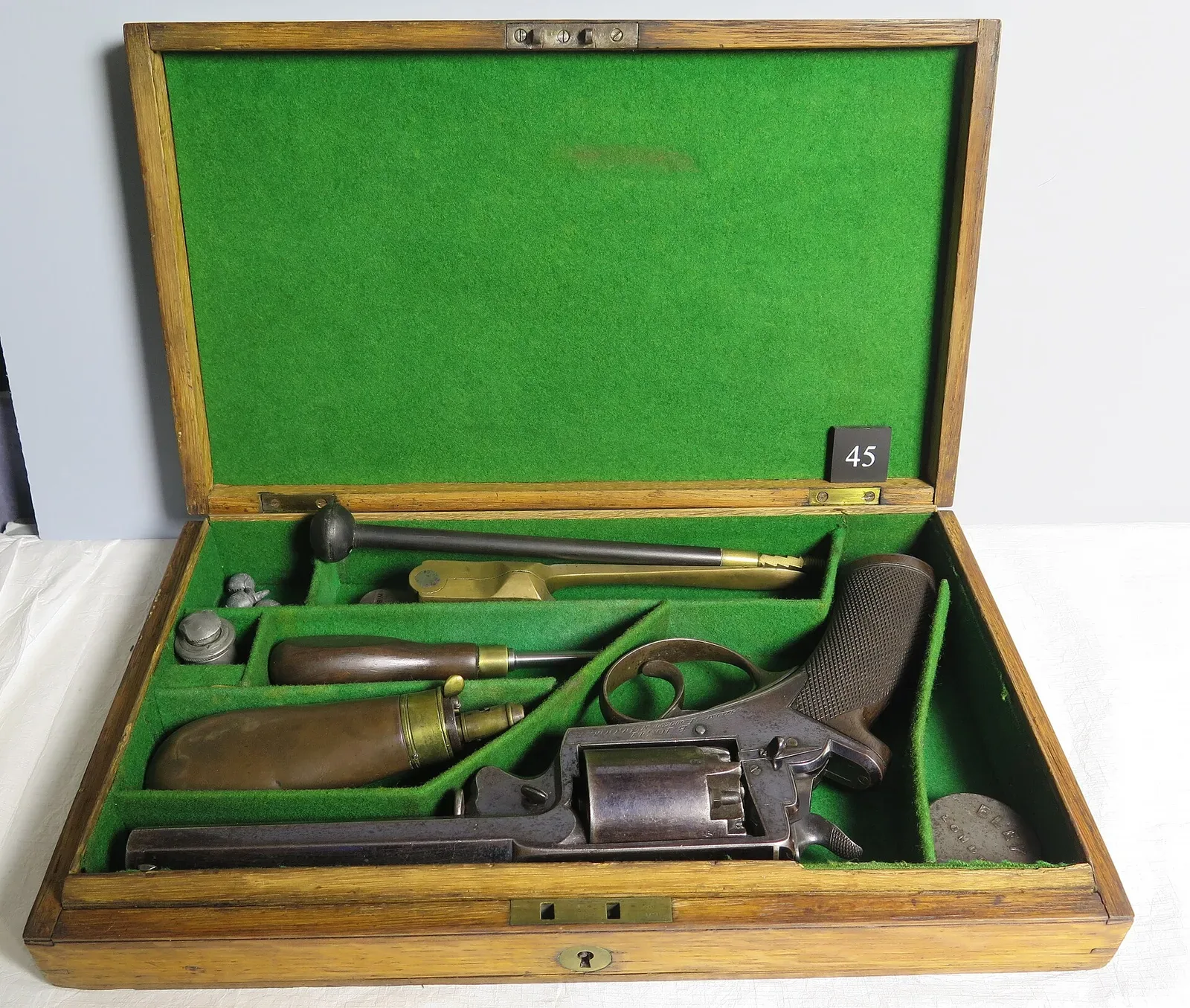

One Crimean veteran took the problem home and solved it. Lieutenant Frederick E.B. Beaumont of the Royal Engineers had experienced the Adams' limitations firsthand. After the war, he designed an improvement, secured a patent, and brought it to Deane, Adams and Deane. The resulting Beaumont-Adams revolver retained the double-action trigger mechanism of the original Adams but added a spur on the hammer — meaning the shooter could thumb-cock it for a lighter single-action pull when the situation allowed, or fire rapidly double-action when it didn't.
According to historical sources, the Beaumont-Adams was the first true double-action revolver as we know it. It also hardened the percussion cap nipples, addressing one of the Adams' more dangerous failure modes.
The British Army adopted the Beaumont-Adams as its official sidearm in 1856.
If Crimea proved the concept, the Indian Mutiny of 1857 cemented it. Reports coming back from India repeatedly described Colt revolvers failing to stop determined adversaries, while British double-action revolvers — chambered in larger calibers — performed more decisively. A damning assessment from Lieutenant Colonel George Vincent Fosbery described an officer emptying a Colt Navy into a mutineer at close range, striking him five times in the chest with all five bullets passing through him, and still being cut down because the mutineer didn't fall fast enough.
Whether the root cause was caliber, bullet construction, or something else entirely, reports like that one accelerated the decline of Colt's British market presence. By the end of 1857, Colt had closed their London factory.
| Model | Year | Key Innovation | Military Adoption |
|---|---|---|---|
| Adams Revolver | 1851 | First DA trigger | Private purchase only |
| Beaumont-Adams | 1856 | DA/SA capability | British Army standard |
| Colt Model 1877 | 1877 | Colt's DA attempt | None (reliability issues) |
| Colt Model 1889 | 1889 | Swing-out cylinder | Limited |
| S&W Model 1899/10 | 1899 | .38 Special + swing-out | Widespread police adoption |
American Adoption Lag
Robert Adams eventually departed Deane, Adams and Deane and founded the London Armoury Company, which manufactured Beaumont-Adams revolvers in a range of calibers including .442, .479, .50, .338, and .32. The design was also license-manufactured in the United States by the Massachusetts Arms Company in both holster and pocket configurations. The Beaumont-Adams became the most common double-action revolver used by both sides during the American Civil War.
The Beaumont-Adams itself was eventually superseded in British service in 1880 by the Enfield Mark I, which chambered centerfire metallic cartridges rather than percussion caps. But the mechanism it established — the true double-action, capable of both modes of fire — became the template for everything that followed.
Meanwhile, American manufacturers were slow to move. The single-action revolver remained more popular in the United States than the double-action through the late 19th century, while European arms makers had largely committed to the DA trigger. When Colt finally made a serious attempt at a double-action design — the Colt Model 1877 — it earned a lasting reputation for a complex, expensive, fragile trigger mechanism that failed frequently and pulled heavily.
Colt's more successful answer came in 1889 with the Colt Model 1889, identified as the first double-action revolver to feature a swing-out cylinder. Earlier double-action designs used top-break or fixed cylinders with loading gates; the swing-out cylinder allowed the shooter to pivot the entire cylinder out to the side of the frame, press a single ejector rod, and drop all empty cases simultaneously. It combined the speed of top-break ejection with the structural rigidity of a fixed frame.
Smith & Wesson followed with their own swing-out cylinder designs, culminating in the Model 1899 — later designated the Smith & Wesson Model 10 — which introduced the .38 Special cartridge and went on to become the highest-volume selling handgun of the 20th century at six million units produced.
How It Worksedit
The Mechanical Sequence
In mechanical terms, the double-action trigger does two things with one motion — which is exactly what the name describes.
Double-Action Firing Sequence - All steps occur during single trigger pull
When a shooter pulls the trigger on a double-action revolver, a series of linked components begin moving in sequence. The trigger drives a cam that pushes the hammer rearward, compressing a hammer spring in the grip and storing the energy needed for a reliable primer strike. Simultaneously, a small pawl engages a ratchet on the back of the cylinder and pushes it through a partial rotation until the next chamber locks into alignment with the barrel.
At the end of the trigger stroke, the sear releases the hammer, the spring drives it forward, and it strikes the firing pin, which fires the cartridge. This cycle repeats with every trigger pull — no separate cocking step required.
| Trigger Mode | Actions Performed | Trigger Weight | Accuracy | Speed |
|---|---|---|---|---|
| Double-Action | Cock hammer + fire | 10-12 lbs | Lower | Higher |
| Single-Action | Fire only | 3-5 lbs | Higher | Lower |
| Double-Action Only | Cock hammer + fire | 10-12 lbs | Lower | Highest |
DA/SA vs DAO Operation
In a DA/SA (double-action/single-action) revolver — the design the Beaumont-Adams pioneered — a hammer spur allows the shooter to pre-cock the hammer manually. With the hammer already cocked, the cylinder pre-indexed, and the sear engaged, pulling the trigger performs only one action: releasing the hammer. This single-action mode produces a noticeably shorter and lighter trigger pull, which most shooters find more conducive to accurate aimed fire.
Double-action only (DAO) revolvers lack the latch that holds the hammer in the cocked position. They typically also have bobbed or spurless hammers — sometimes fully shrouded within the frame — to prevent snagging on clothing during a draw. The original Adams revolver was DAO by design; modern DAO revolvers arrive at the same endpoint through a different engineering choice, prioritizing concealed carry convenience over the option for a lighter single-action pull.
Practical Tradeoffs
The practical tradeoff is straightforward. Double-action trigger pulls typically run in the range of 10 to 12 pounds of pressure. That weight and the long travel of the stroke — the trigger must move far enough to fully cock and then release the hammer — makes precise marksmanship harder than with a pre-cocked single-action trigger.
The double-action revolver's key advantage: draw and fire using only the trigger, with no external safety to disengage and no manual cocking step to complete under stress.
But it also means the revolver can be carried with all chambers loaded, drawn, and fired with a single uninterrupted motion, with no external safety to disengage and no manual cocking step to complete under stress. That combination of factors — draw and fire using only the trigger — is precisely why the double-action became the preferred carry mode for law enforcement.
An important structural note: unlike semi-automatic pistols, revolvers derive no energy from the fired cartridge for cycling. Everything — cylinder rotation, hammer cocking, firing — runs off energy the shooter supplies through the trigger pull or thumb. This means a revolver with a failed cartridge can simply be fired again with another trigger pull, cycling past the problem round. A semi-automatic pistol under the same circumstance requires manual intervention to clear the chamber.
Impact on Warfare & Societyedit

Military Procurement Revolution
The double-action mechanism arrived at a moment when the military value of a sidearm was being actively debated. The percussion revolver had already displaced the single-shot pistol, giving cavalry and officers a genuine multi-shot capability. But single-action operation still imposed a cognitive and physical demand on the shooter at the worst possible moment — in close combat, in low light, under physical stress, against multiple opponents.
The Crimean War letters and Indian Mutiny reports that survive in the historical record are unusual documents: firsthand accounts comparing two competing technologies in actual life-or-death situations. The consensus they expressed — that double-action fire, despite its heavier trigger and reduced precision, was better suited to the close-range, fast-moving combat these soldiers actually experienced — carried real weight with military procurement authorities.
The British Army's 1856 adoption of the Beaumont-Adams was a direct result. The adoption also had industrial consequences. The Beaumont-Adams success accelerated the decline of Colt's European market presence, and Colt's eventual closure of their London factory in 1857 marked a realignment of where the global revolver market was headed. European manufacturers moved toward double-action designs through the 1860s and 1870s — the French MAS Modèle 1873 and later British Enfield Mk I and II among them — while American manufacturers remained largely committed to single-action revolvers for another generation.
Law Enforcement Adoption
The shift in the United States came later and through a different route: law enforcement adoption rather than military procurement. By the early 20th century, double-action revolvers — particularly Smith & Wesson's Model 10 and its descendants in .38 Special — had become the standard-issue sidearm for American police departments.
The double-action revolver dominated law enforcement worldwide through the 20th century, with some departments not transitioning to semi-automatic pistols until the 1990s. The mechanism's combination of simplicity — no external safeties, no magazine to seat or fail, no slide to rack — made it genuinely well suited to police work, where officers needed a sidearm they could deploy under stress with minimal manipulation.
Cultural Impact
The long tenure of the DA revolver in law enforcement had a downstream effect on civilian firearms culture as well. Generations of Americans grew up understanding revolvers as the default handgun, an assumption the firearms industry, Hollywood, and popular culture all reinforced. The .357 Magnum, introduced in the 1930s for Smith & Wesson double-action revolvers, became one of the most recognized handgun cartridges in the world, owing in part to Clint Eastwood's portrayal of Inspector Harry Callahan in Dirty Harry (1971) carrying a Smith & Wesson Model 29 in .44 Magnum — both a fictional and a real artifact of the revolver's cultural peak.
The double-action mechanism's sole mode of operation was specifically cited as reducing training time for the British Army in World War II, where revolver usage was concentrated on rapid fire at very close ranges. The DAO approach eliminated the cognitive step of deciding whether to cock the hammer — the answer was always no, because there was no option.
Modern Relevanceedit
The semi-automatic pistol has broadly displaced the DA revolver in military and law enforcement contexts. Higher magazine capacity, faster reloads, and the refinement of striker-fired designs with consistent trigger pulls and no external safeties removed most of the practical advantages the revolver once held over autoloading pistols.
By the 1980s and 1990s, that transition was well underway in American police departments. But the double-action mechanism did not become obsolete — it became specialized.
Specialized Applications
Revolvers remain common as backup and off-duty handguns for American law enforcement, and they hold significant market share in the concealed carry and home defense sectors. The same properties that made them the law enforcement default for most of the 20th century remain appealing:
- No manual safety to disengage under stress
- Mechanical reliability independent of magazine seating
- DA trigger provides resistance against accidental discharge
- No slide operation required
| Application | Primary Advantages | Common Models |
|---|---|---|
| Concealed Carry | No snag, simple operation | Ruger LCR, S&W Bodyguard |
| Backup Gun | Reliability, no magazines | S&W Model 642, Taurus 85 |
| Home Defense | No safety to forget | S&W Model 10, Ruger GP100 |
| Training Tool | Develops trigger control | Any DA revolver |
Contemporary Designs
Polymer-frame DA revolvers arrived in 2010 — the Ruger LCR, Smith & Wesson Bodyguard 38, and Taurus Protector Polymer among the first — reducing weight while retaining the revolver's mechanical character. These designs target the concealed carry market directly.
The double-action-only variant has found particular traction for concealed carry precisely because spurless or shrouded hammers eliminate clothing snag on the draw. A DAO revolver in a pocket or inside-the-waistband holster can be drawn and fired in one motion with no hammer to catch on fabric — the same logic that drove Adams' original design decision in 1851, now applied to a different carry context.
In competitive shooting, the double-action mechanism lives on in dedicated revolver divisions in organizations like the International Confederation of Revolver Enthusiasts (ICORE) and in cowboy action shooting formats. The challenge of mastering a 10-to-12-pound trigger pull accurately under time pressure has also made the DA revolver a tool some firearms instructors deliberately use for developing fundamental marksmanship skills — the argument being that a shooter who can hit consistently with a heavy double-action pull will find lighter-triggered platforms easier to manage.
The BGC Takeedit
The double-action mechanism is one of those developments that looks obvious in hindsight and was anything but at the time. Robert Adams' 1851 patent addressed a real problem — the awkwardness of thumb-cocking under pressure — but the solution introduced its own problems. A DAO-only trigger that you couldn't stage or pre-cock was a genuine accuracy limitation that mattered in a world where rifles and pistols were still being compared on marksmanship grounds at practical distances.
Beaumont's addition of the hammer spur was the fix that made the whole concept viable. The DA/SA configuration let the mechanism be what the situation demanded.
Beaumont's addition of the hammer spur was the fix that made the whole concept viable. The DA/SA configuration let the mechanism be what the situation demanded: rapid fire when the enemy was close enough to bayonet you, deliberate aimed fire when you had distance and time. That flexibility is why the Beaumont-Adams got adopted and why the pattern it established became standard.
The American lag is interesting. Colt's dominance of the domestic market and the cultural weight of the single-action revolver in the frontier era delayed meaningful adoption of the double-action trigger by at least a generation — and when Colt did try it with the Model 1877, they got it badly wrong. Smith & Wesson's cleaner execution with the Model 10, combined with law enforcement's real need for a consistent, manipulable sidearm that officers of varying skill levels could operate under stress, is what actually put the double-action mechanism in the hands of the most people over the longest period.
The transition to semi-automatics in the 1980s and 1990s didn't make the double-action obsolete so much as it exposed what the revolver was always best at: simplicity, mechanical reliability, and consistent trigger behavior. Those properties haven't changed. Neither has the mechanism.
