800 years of innovation, conflict, and consequence
The History
of Firearms
From Chinese fire lances to 3D-printed receivers. A scrolling narrative tracing the tools, the people, and the moments that shaped the modern firearm.
7 Eras — 47 Moments — 800 Years
Era 1 of 7
1200s - 1400s
The Age of Black Powder
From Chinese alchemy to European battlefields
Smoke and sulfur. The world before the trigger.
For most of human history, killing at distance meant throwing something or launching it with tension — a spear, a sling stone, an arrow. Gunpowder changed the physics. A chemical reaction replaced muscle power, and the monopoly of the trained warrior class began to crack. The fire lance was not elegant, but it did not need to be. It needed to terrify, and it did.

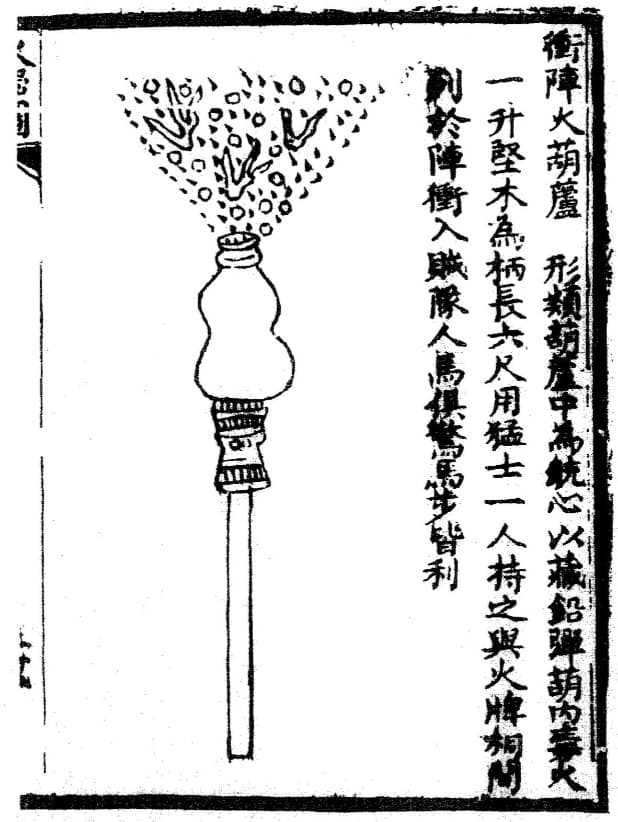

The Fire Lance
Chinese alchemists seeking the elixir of immortality stumbled onto something far more consequential: a mixture of saltpeter, sulfur, and charcoal that burned with terrifying ferocity. The fire lance - a bamboo tube packed with gunpowder and shrapnel, lashed to a spear - became the first firearm. It was crude, unpredictable, and changed everything. By 1259, a critical refinement: a fire lance loaded with a pellet wad propelled entirely by gunpowder — the first true bullet.
c. 1240Gunpowder Reaches Europe
Through trade routes and the Mongol conquests, the formula for gunpowder arrived in Europe. Roger Bacon documented an early formula in 1267. The first European visual proof came in 1326: Walter de Milemete's manuscript depicts a soldier firing a vase-shaped cannon that launches an arrow. Within decades, European metalworkers would take the Chinese invention and forge it into something the Song dynasty never imagined.
The Hand Cannon

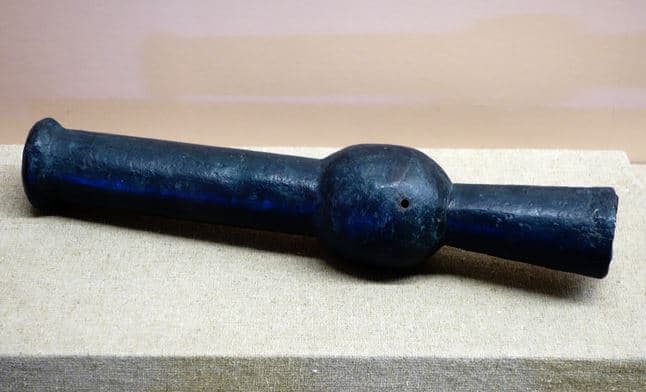

The earliest true handguns were bronze or iron tubes mounted on wooden poles. The Heilongjiang hand cannon, dated to 1288, is the oldest surviving firearm. The Xanadu Gun of 1298 bears a serial number — proof of organized military production, not one-off experimentation. A soldier held the stock under his arm and touched a slow match to a touchhole at the breech. Accuracy was a generous term. But the psychological impact — the thunder, the smoke, the sudden death at distance — made armored knights reconsider their career choices.
1346Crecy and the First Cannons in European Warfare
At the Battle of Crecy, English forces deployed some of the first cannons on a European battlefield — iron balls recovered from the site confirm what chroniclers described. The weapons were primitive and their tactical impact debatable, but symbolically the age of gunpowder warfare had begun. The feudal order built on horse, lance, and castle wall was living on borrowed time.
The Hussite Wars
The Hussite Wars in Bohemia produced the first army to make firearms its primary weapon. Jan Žižka, a one-eyed general fighting for religious reform, mounted hand cannons on reinforced war wagons that served as mobile fortifications. His peasant soldiers, armed with crude firearms called píšťaly, repeatedly defeated the armored knights of the Holy Roman Empire. The Hussites proved that gunpowder could overturn the feudal military order — sixty years before anyone else figured it out.
c. 1420Corned Powder
The discovery that gunpowder could be "corned" - wetted, compressed, and granulated rather than stored as loose dust - was a quiet revolution. Corned powder was roughly 30% more powerful than serpentine dust, safer to transport without separating into its components, and more consistent in burn rate. It turned the hand cannon from a noisemaker into a weapon.
Era 2 of 7
1400s - 1600s
The Lock Revolution
Mechanical ignition transforms the gun from tube to tool
Clockwork precision. The gun becomes personal.
The hand cannon had a fundamental problem: ignition required a free hand. One hand held the weapon, the other touched a lit match to the touchhole. Aiming was aspirational at best. The lock mechanism — a mechanical device that held and applied the ignition source — freed both hands for the weapon and fundamentally changed what a firearm could do.
The Matchlock
The first mechanical firing mechanism was elegantly simple: a curved arm (the serpentine) held a length of smoldering slow match. Pull the trigger, the arm dips, the match touches the priming powder, the gun fires. For the first time, a soldier could aim with both hands on the weapon. The matchlock turned firearms from siege curiosities into infantry weapons — though logistics were brutal. A slow match burned at four to five inches per hour; an army on campaign consumed six feet of cord per man per day.
c. 1470The Arquebus
The arquebus was the matchlock refined into a proper shoulder-fired weapon with a wooden stock, a barrel, and crude sights. It required less training than a longbow, which took a lifetime to master. A peasant with three months of drill could kill a knight at fifty yards. At the Battle of Cerignola in 1503, Spanish arquebusiers behind a ditch defeated French heavy cavalry — the first battle decided primarily by gunpowder small arms. Warfare was being democratized, one trigger pull at a time.
The First Rifled Barrels
Gunsmiths in Augsburg and Nuremberg began cutting spiral grooves inside barrels. The effect was transformative: a spinning projectile flew straighter and farther than a ball rattling down a smooth bore. Rifling was slow to produce and slow to load, but it planted a seed that would take three centuries to fully bloom.
The Wheellock

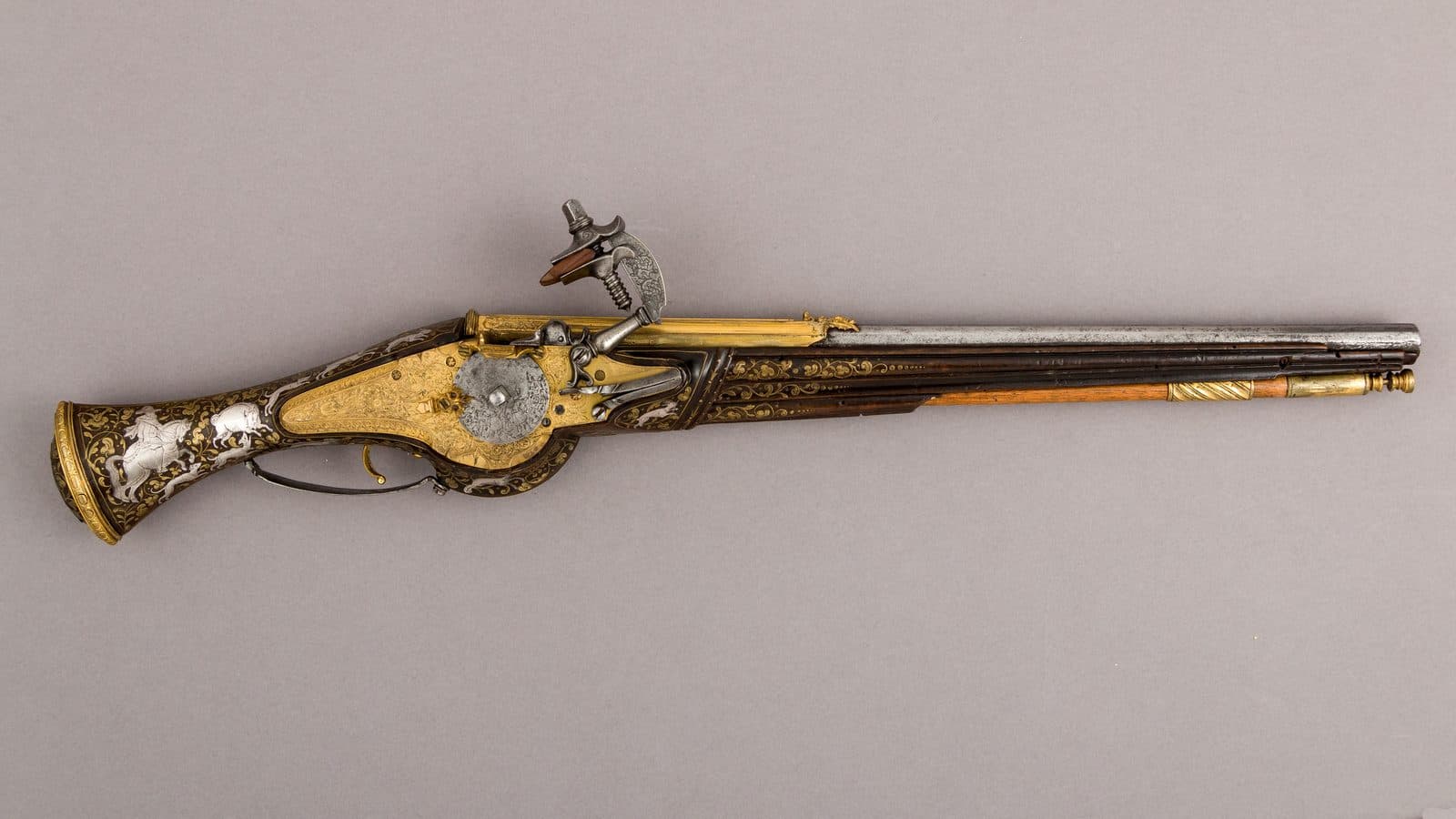

Inspired by the same spring-driven mechanisms as tinder lighters, the wheellock used a spinning steel wheel to shower sparks onto a priming pan. No more fumbling with lit matches in the rain. Expensive and complex, the wheellock was a weapon of cavalry and aristocracy — but it proved that ignition could be instant, reliable, and mechanical. Emperor Maximilian I banned wheellocks in 1517 — the first known firearms prohibition in history — fearing assassins could conceal a loaded, ready-to-fire weapon under a cloak.
The Snaplock and Snaphaunce

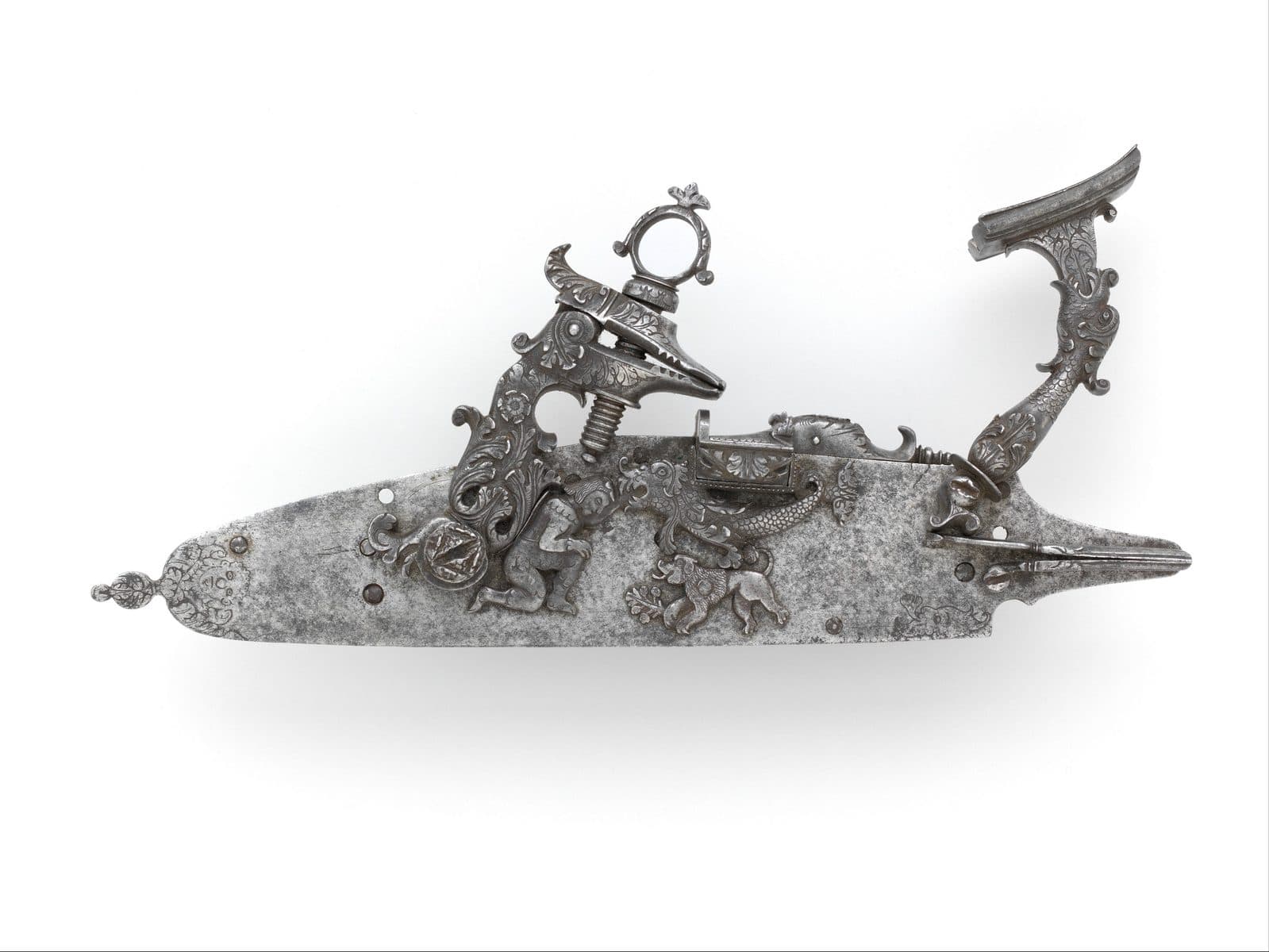

Between the wheellock and the flintlock, European gunsmiths experimented with simpler spark-producing mechanisms. The snaplock, snaphaunce, and miquelet — regional variations on the same principle — used a piece of flint striking steel to create sparks, eliminating the wheellock's expensive clockwork while keeping its advantage of instant ignition. The miquelet spread across the Mediterranean from Spain to the Ottoman Empire; the snaphaunce dominated in Northern Europe and Scotland. These transitional locks set the stage for Marin le Bourgeoys to combine their best features into the true flintlock.
The Flintlock
Marin le Bourgeoys — painter, sculptor, musician, and gunsmith in the court of Louis XIII — created the true flintlock mechanism around 1610. A piece of flint clamped in the cock strikes a steel frizzen, sending sparks into the pan. The design included a half-cock position that served as a safety, preventing accidental discharge. It was reliable, fast, weatherproof enough, and cheap to produce. The flintlock would reign for over two hundred years — longer than any other firearms mechanism in history.
Era 3 of 7
1700s - 1860s
The Industrial Age
Mass production meets percussion ignition
Factories roar. Interchangeable parts change everything.
Two revolutions collided in the late 18th century: the industrial revolution and the chemical revolution. Steam-powered machinery made precision manufacturing possible at scale. New chemistry produced the percussion cap — a small copper cup filled with fulminate of mercury that detonated on impact, replacing the open priming pan and its eternal vulnerability to wind and rain.
Interchangeable Parts
Eli Whitney promised the U.S. government 10,000 muskets built with interchangeable parts — components so uniform that any lock, stock, or barrel could be swapped between weapons. His demonstration before Congress in 1801 was almost certainly staged with hand-fitted parts. The real pioneer was John Hall, who achieved true interchangeability at Harpers Ferry in the 1820s using precision gauges and dedicated machine tools. But Whitney got the credit, and the American System of Manufacturing he popularized would make the gun industry drive the Industrial Revolution as much as cotton or steam.
The Percussion Cap

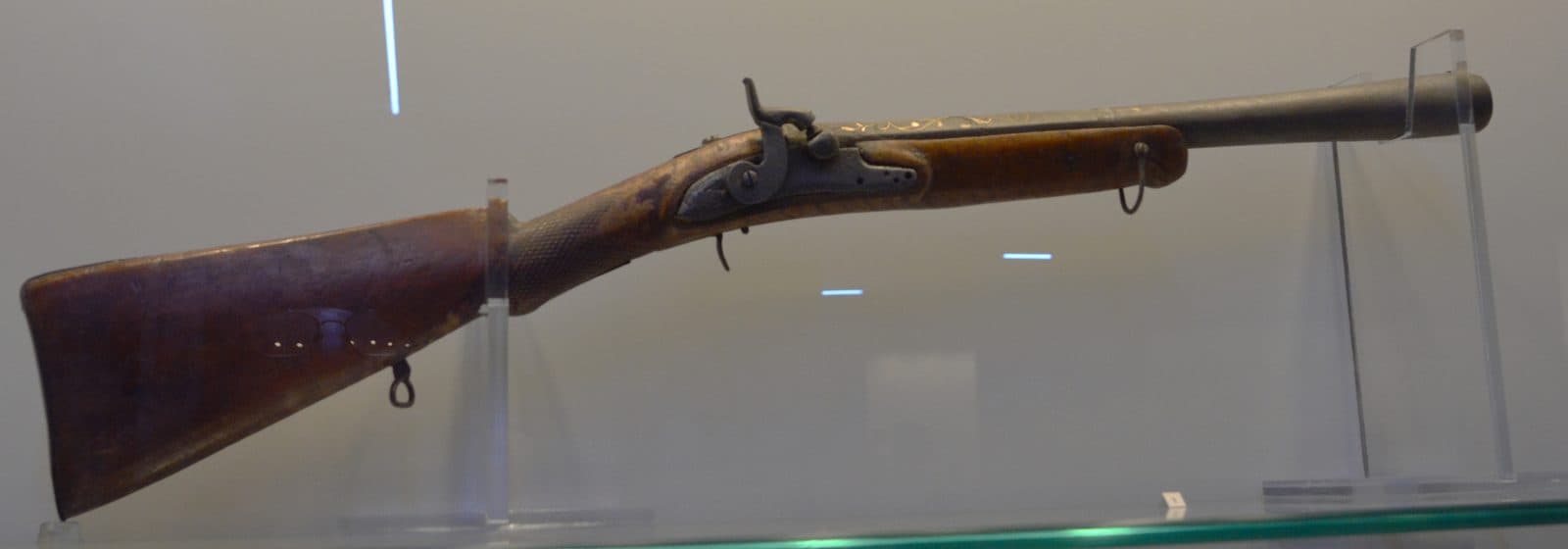

Reverend Alexander John Forsyth, a Scottish Presbyterian minister, was tired of flintlock sparks startling his ducks before the shot arrived. He patented a new ignition system using mercury fulminate. The percussion cap that evolved from his work was a tiny copper cup filled with shock-sensitive explosive. Strike it with a hammer and it fires. No flint, no frizzen, no open priming pan. Misfire rates dropped from roughly one in fifteen to one in two hundred. The gun had become weatherproof and nearly foolproof.
Colt Paterson Revolver

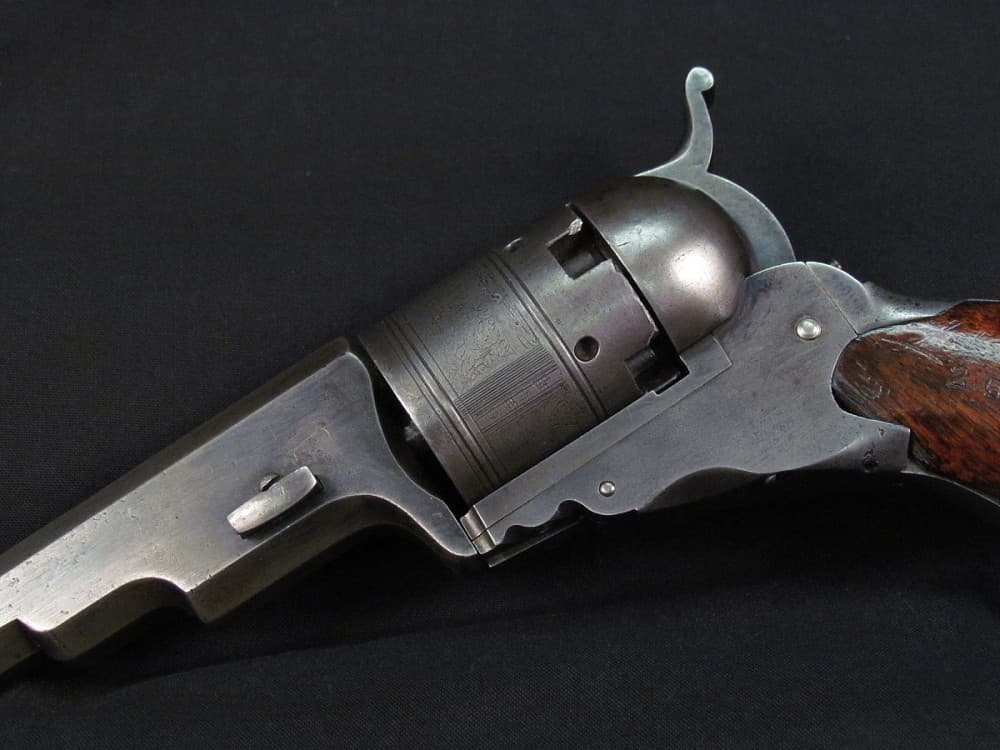

Samuel Colt patented the first practical revolving firearm at age 21. The Colt Paterson was a five-shot .36 caliber revolver with a mechanically indexed cylinder — and an initial commercial disaster. His Patent Arms Manufacturing Company went bankrupt in 1842. Then the Texas Rangers discovered the Paterson was devastating against Comanche horsemen, and Captain Samuel Walker collaborated with Colt on the massive .44 caliber Walker Colt of 1847. Colt's Hartford factory would become a temple of industrial manufacturing, and "Colt" would become a synonym for the American handgun.
The Springfield Armory
By the 1850s, the U.S. Springfield Armory was producing rifled muskets with percussion locks at industrial scale. The Model 1855 and its successor, the Model 1861 Springfield, would arm the Union and define the American Civil War. Over a million Model 1861s were manufactured between 1861 and 1865. The era of the handcrafted firearm was ending; the era of the arsenal had begun.

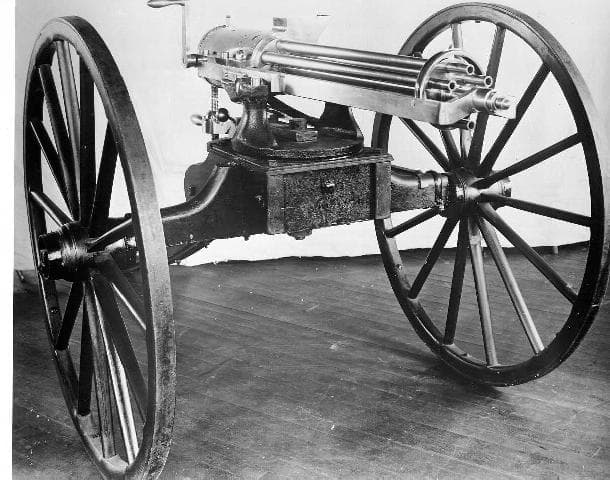

The Gatling Gun
Richard Jordan Gatling, a doctor by training, patented a hand-cranked, multi-barrel weapon that could fire 200 rounds per minute — ten times the rate of a trained rifleman. His logic was strangely humanitarian: if one soldier could do the work of many, fewer men would be needed on battlefields and fewer would die of disease in camps. The math did not work out that way. The Gatling saw limited Civil War use but became a fixture of colonial warfare, the stepping stone between massed rifle volleys and the true machine gun.
References
Percussion cap
Handbook
Interchangeable parts
Handbook
Samuel Colt
Coming soon
Minie ball
Handbook
Gatling gun
Handbook
Era 4 of 7
1860s - 1900s
The Metallic Cartridge Era
Self-contained ammunition revolutionizes everything
Brass. Smokeless powder. The lever action and the Mauser.
The self-contained metallic cartridge solved the last great reliability problem in firearms: the separate loading of powder, projectile, and primer. A brass case held all three in a single waterproof, drop-safe unit that could be loaded in seconds. Rimfire cartridges came first (the .22 Short, 1857), followed by centerfire designs that could handle higher pressures and be reloaded.
The Rimfire Cartridge
Louis-Nicolas Flobert created the first self-contained metallic cartridge: a copper case with priming compound folded into the rim. No separate cap, no loose powder, no patched ball. Just a single unit you loaded and fired. The .22 BB Cap contained no powder at all — the primer alone propelled the bullet, making it quiet enough for indoor parlor shooting galleries that became a fashionable European pastime. The cartridge was a toy. The principle it established would devour the world.
The Henry Rifle

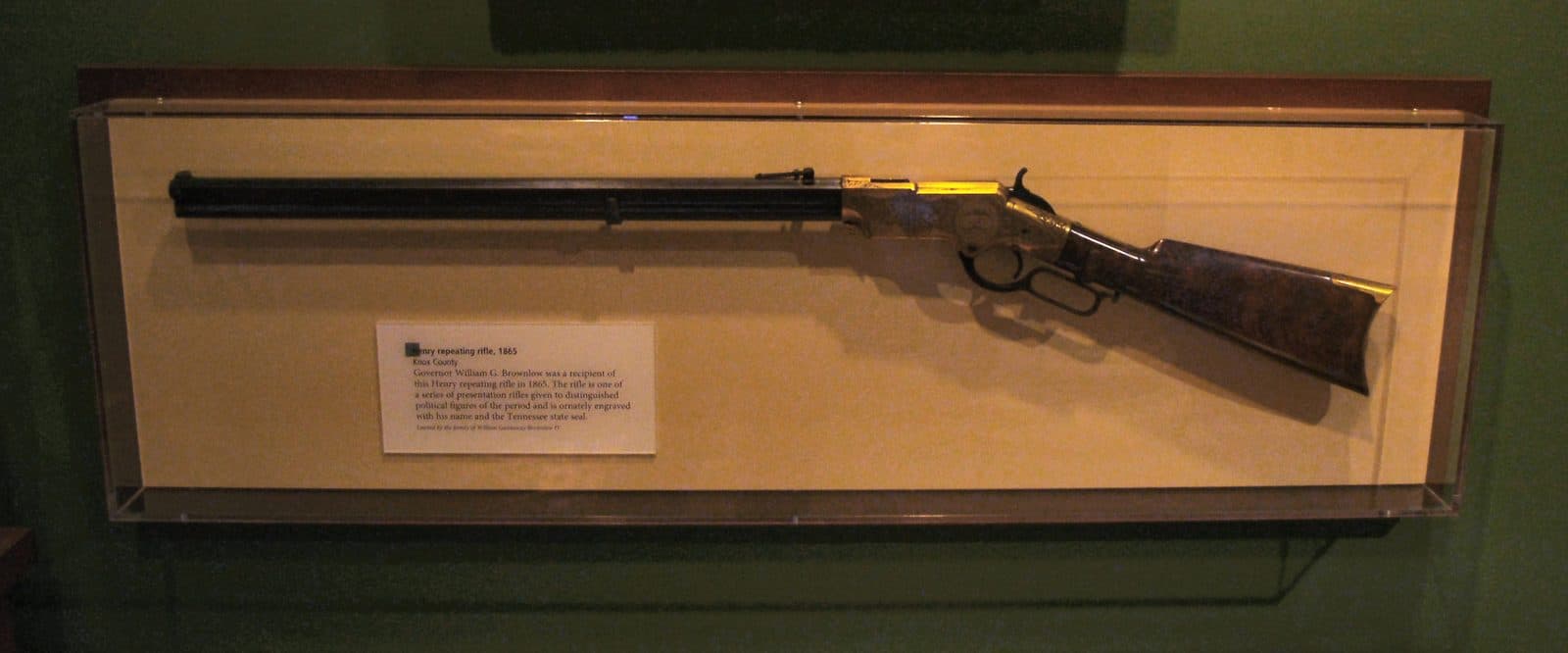

Benjamin Tyler Henry designed a lever-action repeating rifle fed by a 16-round tubular magazine. Confederate soldiers called it "that damned Yankee rifle you load on Sunday and shoot all week." Only about 10,000 were produced — the open-slot magazine was vulnerable to dirt and damage, a flaw Winchester would later fix. But the Henry proved that a single soldier with a repeating arm could produce the firepower of a squad armed with single-shots. The age of the repeater had arrived.
Winchester Model 1873

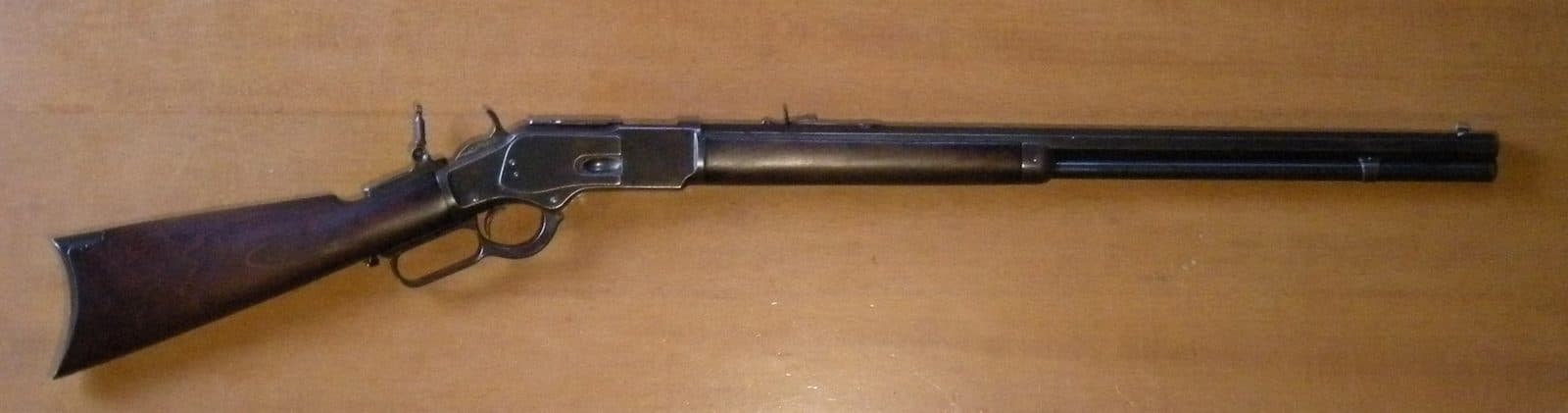

The Winchester '73 became "The Gun That Won the West." Chambered in .44-40 WCF — the same cartridge as the Colt Single Action Army revolver — this was no accident but a deliberate marketing strategy. A frontiersman could carry one caliber for both his rifle and his pistol, simplifying supply on the frontier where ammunition was scarce and expensive. Winchester sold over 720,000. It was not the most powerful or the most accurate, but it was the most American.
Smokeless Powder
Paul Vieille developed Poudre B, the first practical smokeless powder, for the French military. France fielded it in the Lebel Model 1886 — and triggered a frantic arms race. Germany responded in 1888, Britain in 1889, Austria-Hungary in 1890, Russia in 1891. Within five years, every major army had abandoned the powder that had served for five centuries. Smokeless powder produced three times the energy of black powder with almost no smoke and far less fouling. It also enabled smaller, faster bullets — the age of the high-velocity rifle was born.
1889The Double-Action Revolver Goes Military
The transition from single-action to double-action revolvers — where pulling the trigger both cocks and releases the hammer — seems minor but was transformative. The U.S. Navy adopted the Colt M1889 as its first double-action service revolver. The speed advantage was decisive: a trained shooter could empty six rounds in seconds without manually thumbing the hammer between shots. The double-action mechanism would dominate police and military sidearms for nearly a century, until polymer-framed semi-automatics finally killed it.

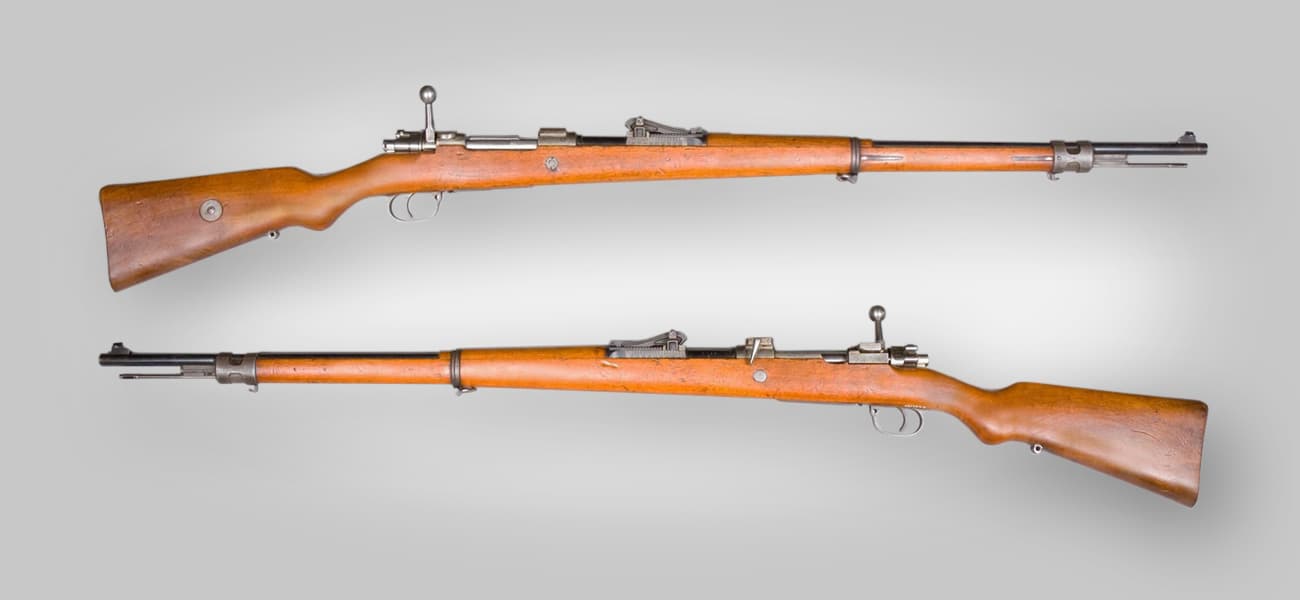

The Mauser 98
Paul Mauser's Gewehr 98 was the pinnacle of bolt-action rifle design. Its controlled-feed action, massive claw extractor, and three-position safety became the template that every bolt-action hunting rifle still follows. The design was so superior that the United States paid Mauser royalties for the 1903 Springfield — while fighting Germany in WWI. The 1903 Springfield, the Pattern 14 Enfield, and a hundred sporting rifles since are all children of the Mauser 98. For dangerous game, the controlled-feed Mauser action remains the gold standard.
Era 5 of 7
1900 - 1960
World Wars & Modern Combat
Industrial slaughter drives radical innovation
Trenches. Beach landings. The gun becomes a system.
The 20th century's two world wars compressed a century of firearms evolution into five decades. The Maxim gun demonstrated at the Somme what automatic fire meant against massed infantry — entire battalions destroyed in minutes. The 1911 pistol gave American soldiers a .45 caliber sidearm so reliable that it served for 74 years. Trench warfare demanded new categories of weapon: the submachine gun for close-quarters clearing, the general-purpose machine gun for suppressive fire.
The Maxim Gun
Hiram Maxim, an American-born British inventor, created the first fully automatic machine gun. It used the recoil of each fired round to eject the spent case and load the next. One gun, one operator, 600 rounds per minute. As Hilaire Belloc wrote of colonial warfare: "Whatever happens, we have got / The Maxim gun, and they have not." At the Battle of the Somme in 1916, German machine guns helped kill 19,240 British soldiers in a single day. The machine gun made frontal infantry assault suicidal.

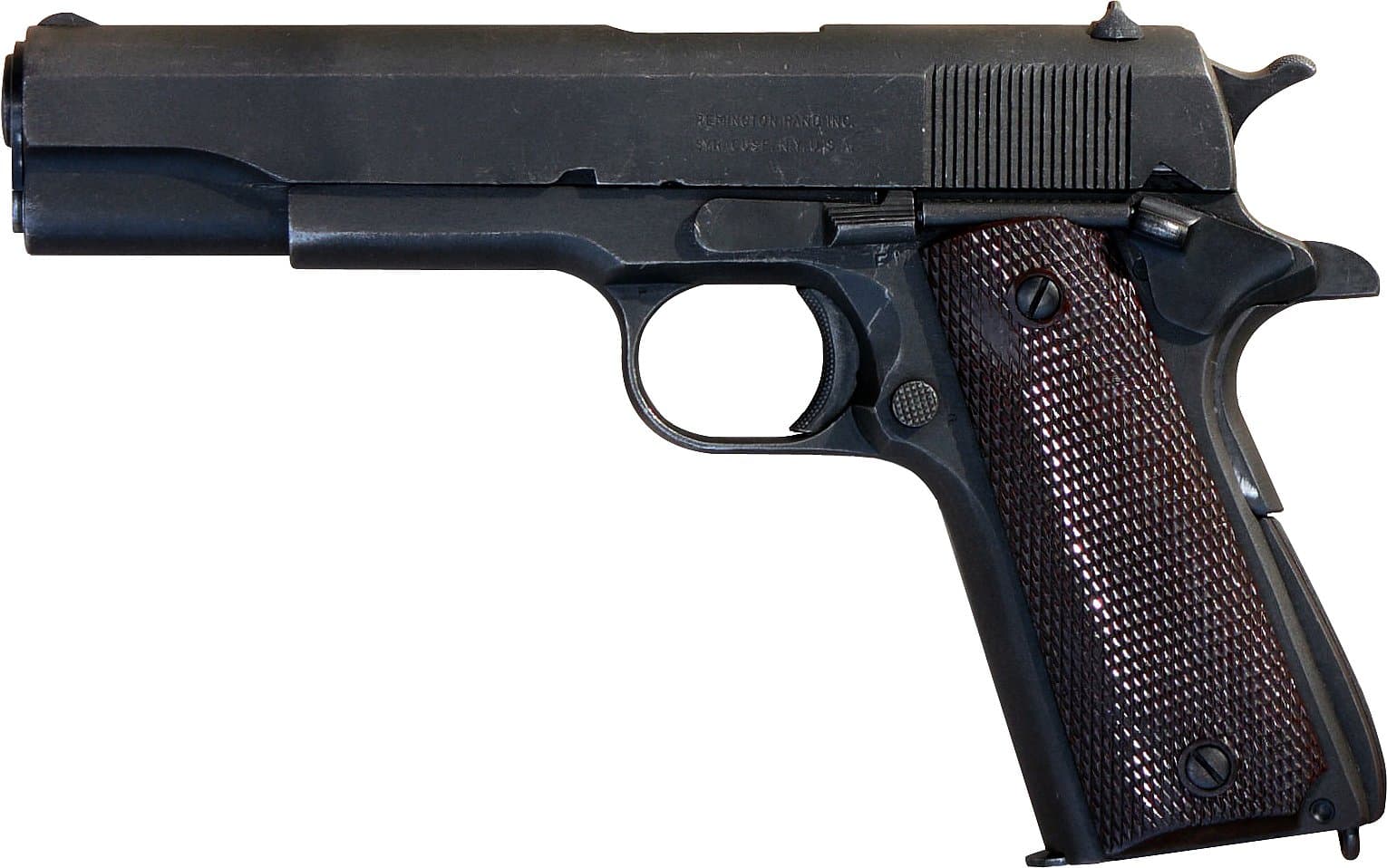

The M1911
John Moses Browning designed both the .45 ACP cartridge and the pistol built around it — the M1911. The round was developed specifically for this weapon after the Army's experience with underpowered .38 caliber revolvers in the Philippines. A semi-automatic with a 7-round magazine, it would serve as the standard American sidearm for 74 years, through two world wars, Korea, and Vietnam. The 1911 is still manufactured by dozens of companies today. More than a pistol, it is an article of faith.
The Thompson Submachine Gun

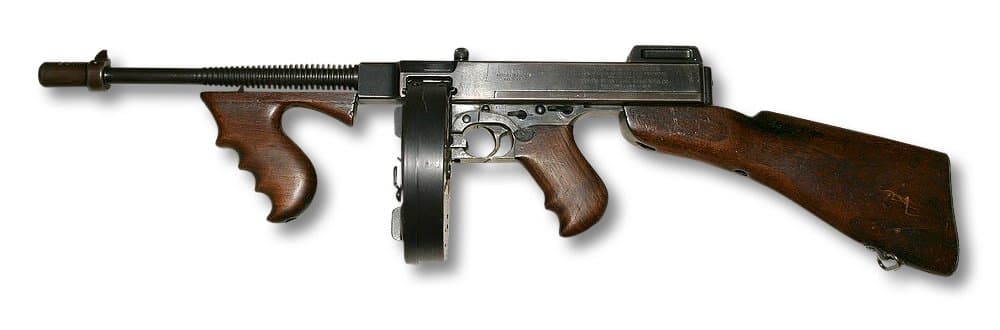

John T. Thompson began designing his "auto rifle" in 1917 for trench warfare. Production didn't begin until 1921 — too late for WWI but just in time for Prohibition. The Tommy Gun became the weapon of gangsters and G-men alike, then redeemed itself in WWII as the weapon GIs carried from Normandy to Okinawa. It proved that a fully automatic weapon in a pistol caliber had a permanent place in warfare.
The StG 44 - The First Assault Rifle
Hugo Schmeisser's Sturmgewehr 44 combined the range of a rifle with the firepower of a submachine gun. Firing an intermediate cartridge (the 7.92x33mm Kurz), it gave a single soldier controllable full-auto fire at infantry combat distances. Hitler initially opposed the project, so developers disguised it as the "Maschinenpistole 43." When Hitler encountered enthusiastic front-line soldiers asking for "more of these new rifles," he relented — and personally named it "Sturmgewehr" (storm rifle). It defined the concept that every modern military rifle follows: select-fire, detachable magazine, intermediate cartridge.

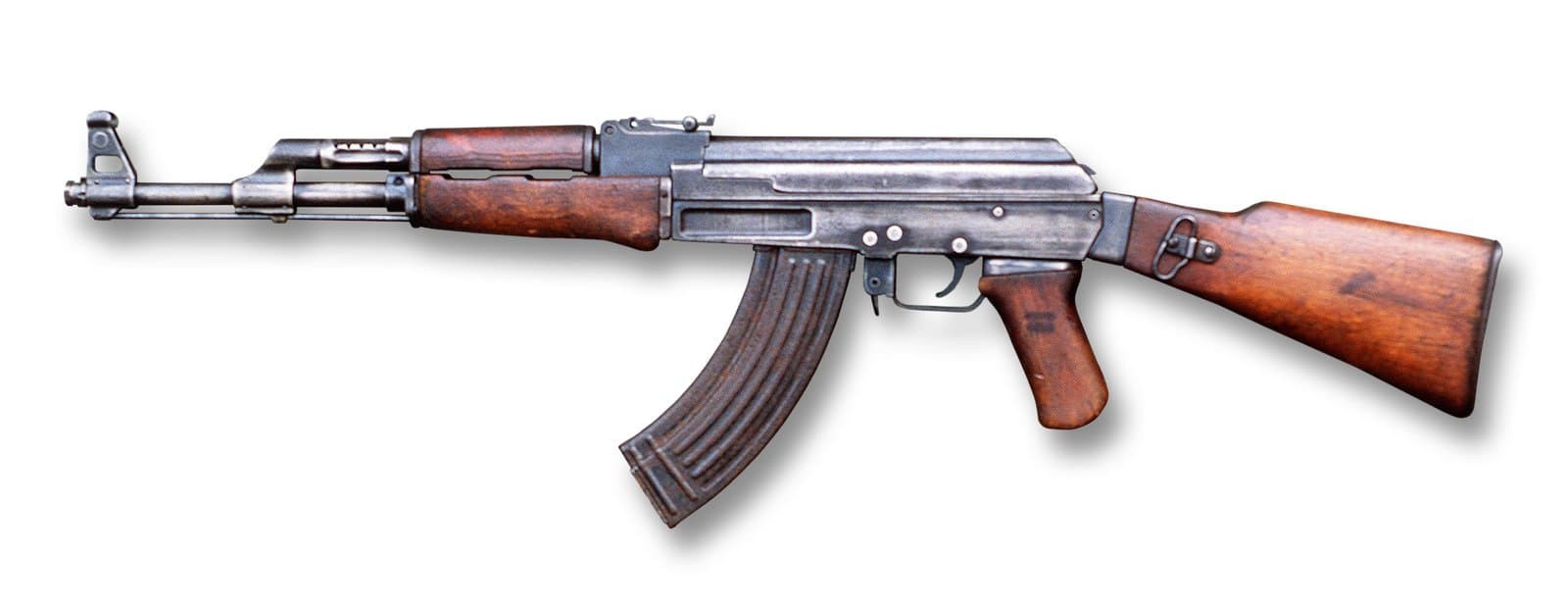

The AK-47
Mikhail Kalashnikov, a tank sergeant wounded at Bryansk, designed a rifle that would become the most produced firearm in history. The AK-47 was not the most accurate, not the lightest, not the most ergonomic. But it worked. In mud, in sand, in arctic cold, in jungle humidity — it worked. Over 100 million have been manufactured. It appears on the flag of Mozambique and the emblem of Hezbollah. Near the end of his life, Kalashnikov wrote to the head of the Russian Orthodox Church asking whether he bore responsibility for the deaths caused by his invention.
Era 6 of 7
1960 - 2000
The Modern Platform
Modularity, polymers, and the black rifle
Picatinny rails. Polymer frames. The gun becomes a platform.
Eugene Stoner's AR-15 design did something no previous firearm had achieved: it separated the weapon into a modular system of interchangeable components. An upper receiver, a lower receiver, a barrel, a handguard, a stock, a trigger group — each replaceable, upgradeable, and customizable independently. The owner of an AR-15 could reconfigure it from a 20-inch varmint rifle to a 10.5-inch CQB carbine by swapping one assembly. No other weapon in history offered this flexibility.
The AR-15
Eugene Stoner at ArmaLite first designed the AR-10 in 7.62 NATO in 1956, then scaled it down. The AR-15, completed in 1957, used aircraft-grade aluminum and a direct impingement gas system. Chambered in the new .223 Remington (5.56 NATO), it weighed under 7 pounds loaded. The military adopted it as the M16. Half a century later, the AR-15 platform has become the most popular rifle in America — not because it is military, but because it is modular. It is not a gun. It is a platform.
1964The M16 in Vietnam
The early M16 deployment in Vietnam was a catastrophe. Soldiers were issued rifles without cleaning kits and told the weapon was "self-cleaning." The Army switched from the specified IMR 4475 stick powder to WC 846 ball powder to cut costs — dramatically increasing the cyclic rate and fouling. The rifles jammed in combat. Men died. The scandal led to Congressional hearings, a redesign (the M16A1 with chrome-lined barrel and forward assist), and a painful lesson: every weapon is only as good as its logistics chain.
The Glock 17
Gaston Glock, an Austrian engineer whose prior expertise was manufacturing curtain rods and knife scabbards, won a military pistol trial with a polymer-framed, striker-fired 9mm that held 17 rounds. The firearms industry laughed. Then police departments adopted it. Then militaries. Then everyone. Die Hard 2 claimed it was invisible to metal detectors — a complete myth, since the slide, barrel, and 17 rounds are all steel and brass. The Glock proved that a handgun could be light, reliable, high-capacity, and inexpensive. It killed the double-action revolver as a duty weapon.
1982The Barrett M82
Ronnie Barrett, a photographer with no engineering degree, built a semi-automatic rifle chambered in .50 BMG — a round designed for the M2 machine gun. Military experts said a shoulder-fired .50 caliber was impossible. Barrett built it in his garage. The weapon found its proving ground in the 1991 Gulf War, where Marines used M82s to disable Iraqi vehicles and equipment at extreme range. The M82 became the standard anti-materiel rifle of NATO forces, capable of engaging targets at over a mile.

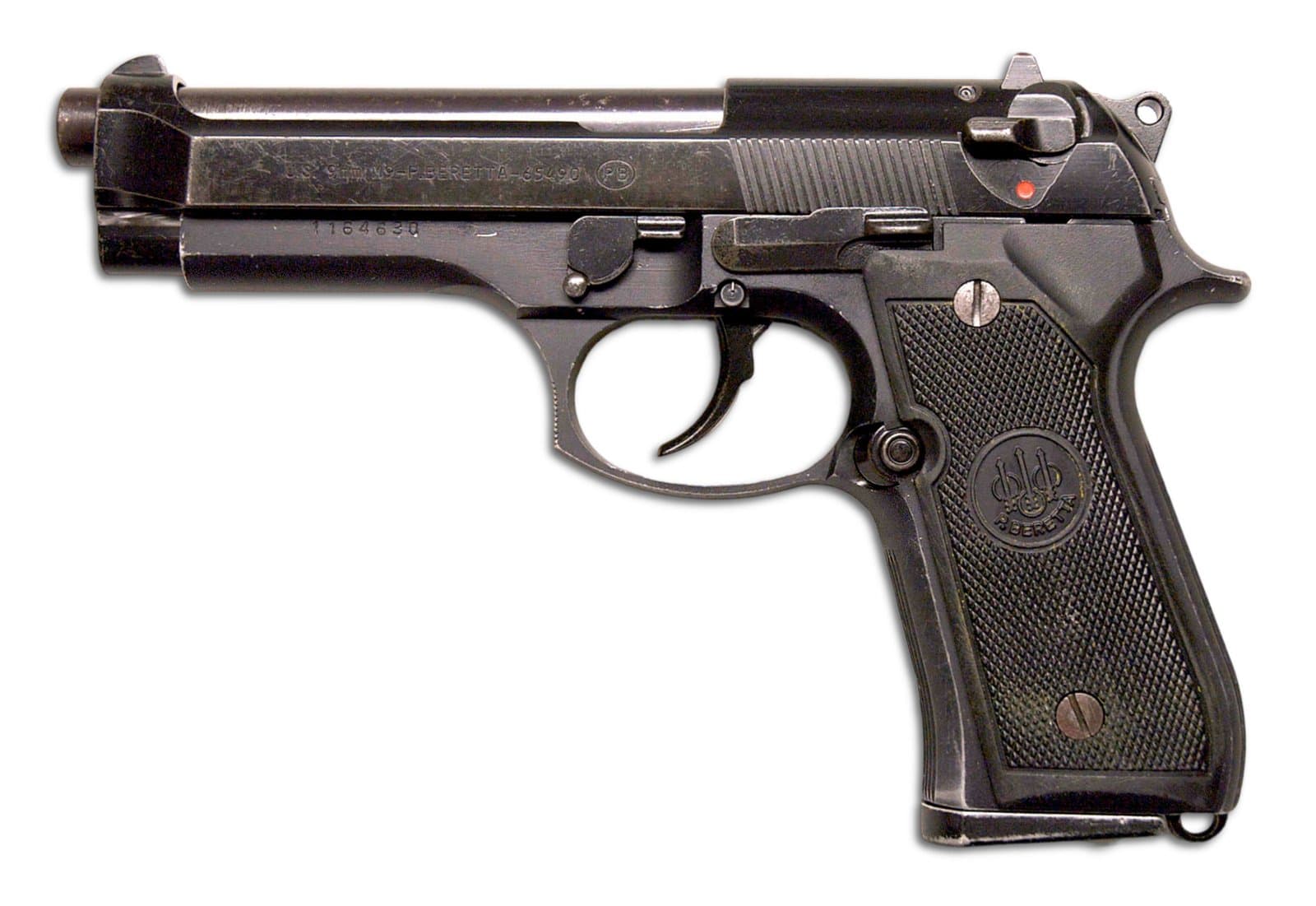

The Beretta M9
When the U.S. military replaced the M1911 after 74 years of service, the choice was controversial: an Italian-designed, 9mm, double-action pistol with a 15-round magazine. The Beretta 92F (designated M9) won the Joint Service Small Arms Program trials in 1985, beating entries from SIG Sauer, Smith & Wesson, and others. Traditionalists howled that a 9mm could not match the .45's stopping power. The debate between 9mm and .45 ACP has never truly ended — it just moved to internet forums.
The Concealed Carry Revolution
Florida became the first major state to pass a "shall-issue" concealed carry law in 1987. Before this, carrying a concealed firearm was effectively prohibited in most of America. Within two decades, the vast majority of states had followed. The concealed carry movement drove a revolution in compact pistol design and holster technology, and permanently changed the relationship between Americans and their firearms.
References
Era 7 of 7
2000 - present
The Digital Frontier
Silicon, 3D printing, and the future of firearms
Smart optics. Printed receivers. The gun meets the algorithm.
The 21st century introduced a question no previous era had to answer: what happens when anyone can manufacture a firearm at home? Cody Wilson's Liberator, a single-shot .380 pistol printed entirely from ABS plastic on a consumer 3D printer, was crude and fragile. But it proved the concept, and the technology improved fast. Within a decade, CNC desktop mills and improved printer materials made home-built firearms a practical reality, not a stunt.
District of Columbia v. Heller
In a 5-4 decision, the Supreme Court ruled for the first time that the Second Amendment protects an individual right to possess a firearm unconnected to service in a militia. Justice Scalia's majority opinion in Heller became the foundational text of modern firearms law. Every gun regulation case since cites it. The legal landscape of firearms ownership in America was permanently redrawn.

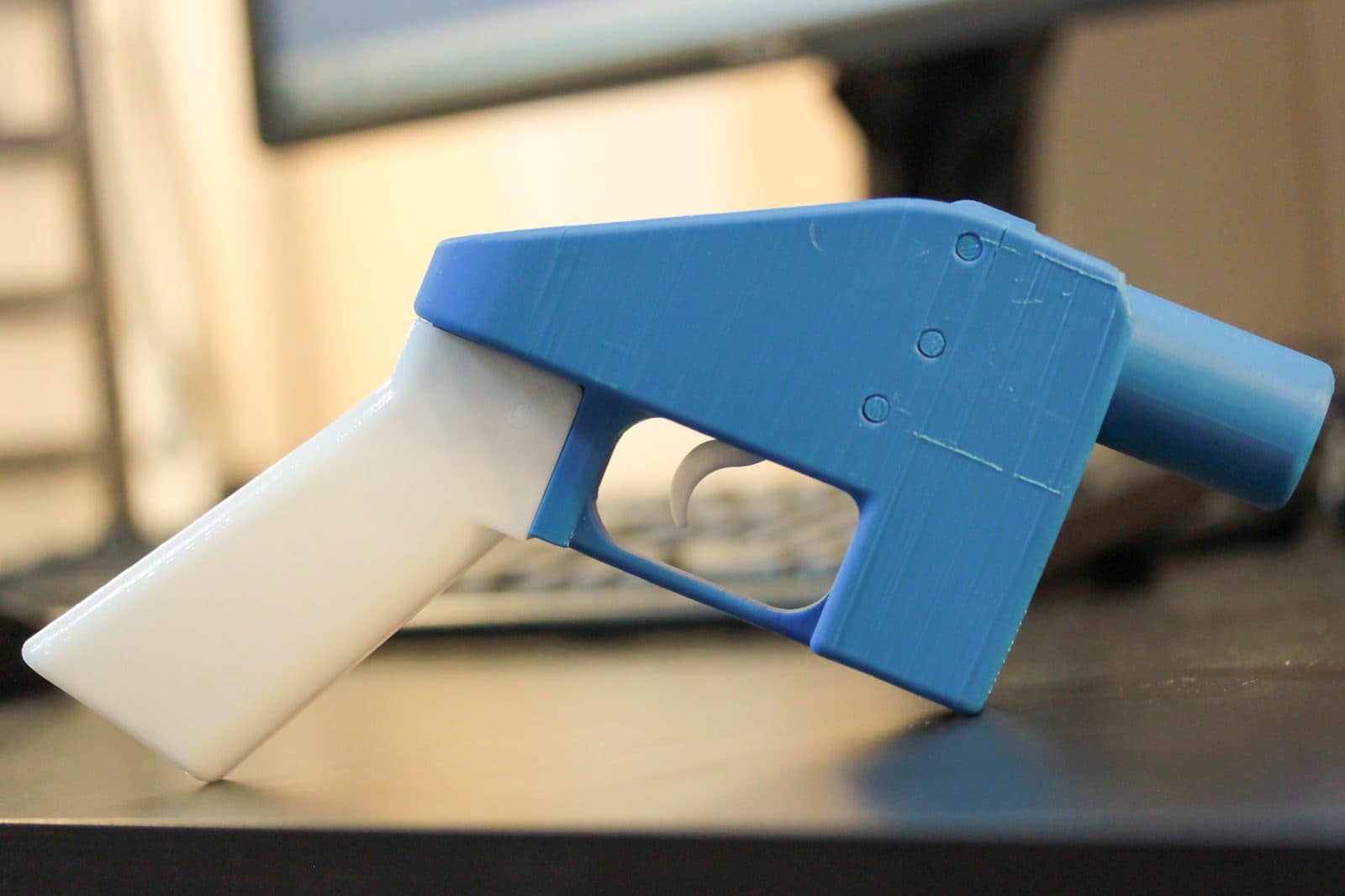

The Liberator - 3D Printed Firearms
Cody Wilson of Defense Distributed published the first fully 3D-printable pistol design. The Liberator was crude — a single-shot .380 ACP that might survive a few firings. But its significance was conceptual, not practical. A firearm design could now be distributed as a digital file. By 2024, designs like the FGC-9 (a 9mm semi-automatic requiring no regulated parts) had evolved far beyond the Liberator's novelty, with over 300 seizures in the UK alone. The implications for regulation, manufacturing, and the very definition of a "gun" are still being worked out.
New York State Rifle v. Bruen
The Supreme Court struck down New York's "may-issue" concealed carry licensing scheme, ruling that the Second Amendment protects the right to carry firearms in public for self-defense. Justice Thomas's majority opinion established a new framework: gun regulations must be consistent with the historical tradition of firearms regulation. Bruen reshaped Second Amendment jurisprudence overnight.

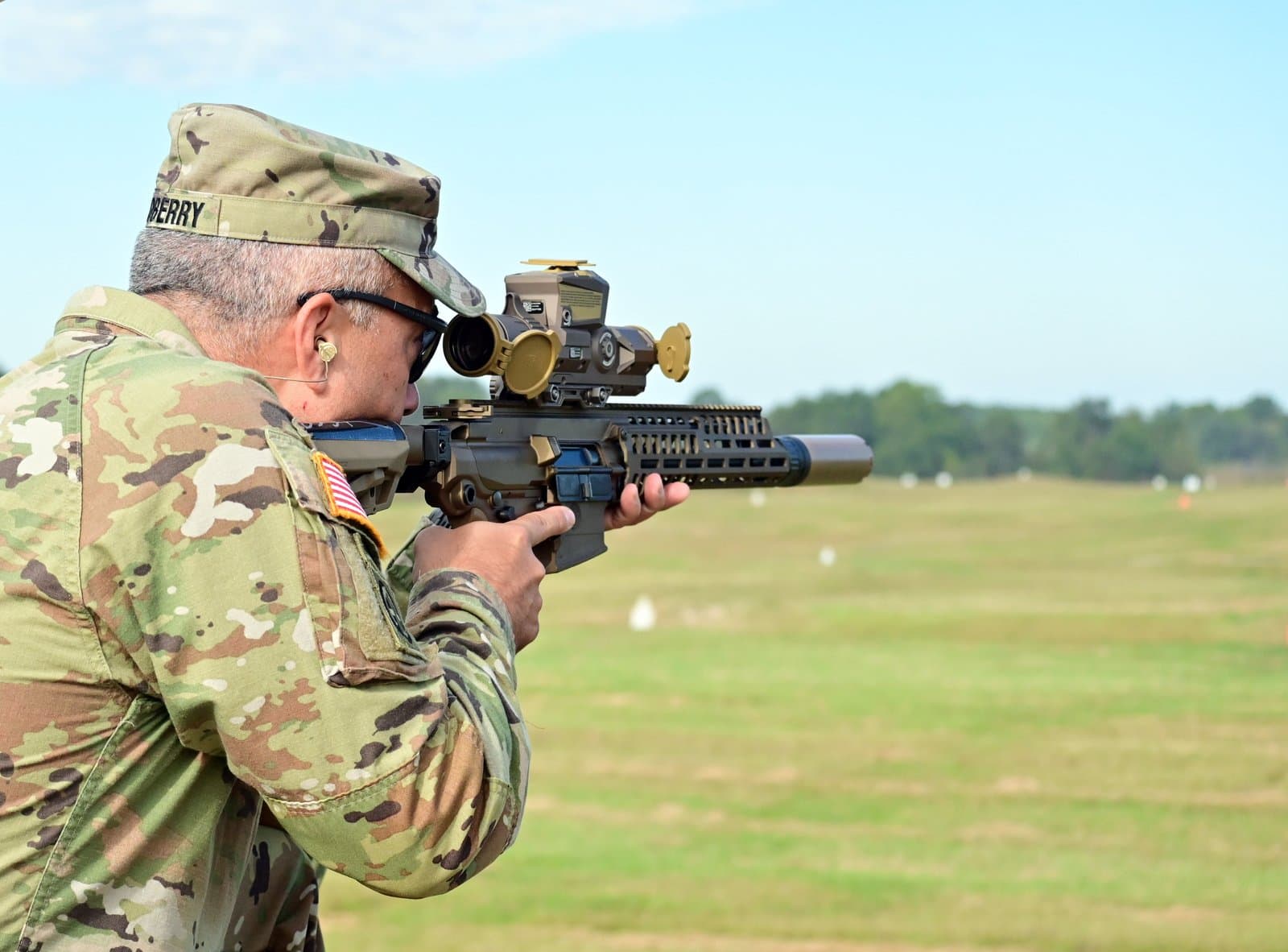

Next Generation Squad Weapon
The U.S. Army selected the SIG Sauer XM7 rifle and XM250 automatic rifle to replace the M4 and M249 SAW. Chambered in 6.8x51mm — a hybrid cartridge with a steel base and brass body generating 80,000 PSI chamber pressure, nearly double a standard 5.56 — the NGSW program represents the first caliber change for the American infantry since 1964. The XM157 fire control system pairs a ballistic computer with laser rangefinder, visible and infrared aiming lasers, and atmospheric sensors. The new weapons are designed around the optic as much as the cartridge.
2023Forced Reset Triggers and the ATF
The legal battle over forced reset triggers (FRTs) — mechanical devices that reset the trigger after each shot, enabling near-automatic rates of fire from semi-automatic rifles — epitomizes the ongoing tension between firearms technology and regulation. The ATF classified them as machine guns; manufacturers and gun rights organizations challenged the ruling. The courts are still deciding.
